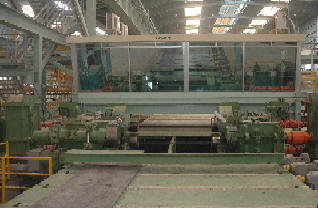

The Hot Rolling Mill
The AZE Hot Reversing Plate Mill, manufactured by SMS
DEMAG AG, has an annual capacity of 60,000 ton producing plates
with thickness ranging from 4.5 mm to 100 mm, and width ranging
from 1.0 m to 3.5m of maximum length 30m. In addition, a
vertical edging facility is fitted with automatic width control.
The Mill is served by a Walking Hearth Reheat Furnace with a
capacity of 35t/hr providing a hearth temperature zone of 1250°C
and accepting slabs from 80 to 350 mm thickness of width 1.0 to
3.5 m and length 1.9 to 4.1 m.
The Hot Leveller accepts plate from 4.5 to 50 mm thickness, of
width 1.1 to 3.65 m at 450 to 1000°C with a levelling speed up
to 120 m/min.
The Cold Leveller is rated at a line speed of 15 to 30 m/min.
The Rotary Side Trimming Shear trims up to a thickness of 25 mm
with a maximum line speed of 30 m/min.
A Dividing Shear can process plates 1.0 – 3.5 m wide and up to
50 mm thick.
Product Mix Hot Rolling Mill
-
General Information
Plate
Width:
Up to 3,500 mm
Plate Length:
Up to 30 m
Plate Thickness
Hot
Rolled, Heat Treated:
4.5 to 100 mm
Controlled (normalized) Rolled
4.5 to 50 mm
Controlled (TM Rolled)
4.5 to 30 mm
Other
dimensions are subject to inquiry.
-
General Structural Steels
According to accepted standards and specifications, e.g.
EN
10025, ASTM A36, A283, A573 and others.
- Ship
Building Steels
-
Normalized ; Fine
Grain A1; Grades A,B,D ; Max.Thickness (100 mm)In
compliance with Lloyd's Register.
-
Higher strength
grades: AH32, DH32, AH36, DH36, EH36.
-
Steel for Vessel Fabrication, Boiler Plate, Pressure Vessels
According to standard codes, e.g.
EN
10027, EN 10028, ASTM A515, A516, A537, A612.
- Case
Hardening and Heat Treatable Steels
In
compliance with international standards, e.g.
EN
10083, EN 10250, ASTM A514, A519, and others.
-
Steel for Production of Large-Diameter Line Pipes
According to the following codes and specific customer
specifications: API 5L, latest edition EN 10208. |
|
|

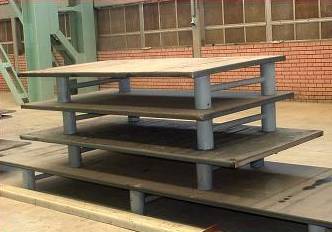

Hot Rolled Plates ( Heat treated or as Rolled )
|
|
Type of steel |
Steel grade |
Material No. |
Standard |
Thickness (mm) |
Width (mm) |
Length (mm) |
|
Pressure Vessels |
P355GH |
1.0473 |
ASTM 515 |
8 - 38 |
< 3,500 |
2.400 - 12,000 |
|
ASTM 516 |
|
Carbon Steel |
28Mn6 |
1.1170 |
ASTM 283 |
5 - 32 |
< 3,500 |
2400 - 12,000 |
|
ASTM 285 |
|
ASTM 299 |
|
CK 10 |
1.1121 |
EN 10084 |
5 - 100 |
< 3,500 |
< 12,000 |
|
C22 |
1.0402 |
EN 10083-2 |
|
CK22 |
1.1151 |
EN 10083-1 |
|
C35 |
1.0501 |
EN 10083-2 |
|
CK35 |
1.1181 |
EN 10083-1 |
|
C45 |
1.0503 |
EN 10083-2 |
|
CK45 |
1.1191 |
EN 10083-1 |
|
C50 |
1.054 |
EN 10083-2 |
|
CK50 |
1.1206 |
EN 10083-1 |
|
C60 |
1.0601 |
EN 10083-2 |
|
CK60 |
1.1221 |
EN 10083-1 |
|
Low Alloy Steel |
13CrMo4-5 |
1.7335 |
EN 10028-2 |
|
17CrNiMo6 |
1.6587 |
EN 10084 |
|
34CrNiMo6 |
1.6582 |
EN 10083-1 |
|
16MnCr5 |
1.7131 |
EN 10084 |
|
41Cr4 |
1.7035 |
EN 10083-1 |
|
42CrMo4-5 |
1.7225 |
EN 10083-1 |
|
Pipe Steel |
X42 |
|
API 5L |
4.5 - 38 |
< 3,500 |
12,000 |
|
X52 |
|
X56 |
|
X60 |
|
X65 |
|
Shield Steel |
32NiCrMo12-5 |
1.6655 |
|
5 - 100 |
< 3,500 |
2,000 |
|
32MnSi7 |
|
|
4.5-50 |
1,300- |
1,500 |
|
30NiCrMo6-4 |
|
|
50-100 |
3,500 |
|
|
|
|
